OpenID Connect (OIDC)

OpenID Connect (OIDC) lets users sign in to Roxy-WI through an identity provider. You can configure multiple providers, give each one a login button, link existing users or create users on first sign-in, and map external groups to Roxy-WI groups and roles. Local and LDAP login remain available.

Screenshots show unsaved example values in the Roxy-WI demo. Use your own identity provider, domains and groups when configuring your installation.

This guide applies to Roxy-WI 9.1 and later. OIDC requires an active Enterprise or Premium subscription; existing Cloud subscriptions also support it. Only a super administrator can manage providers and mappings in Admin → OIDC.

• Use an HTTPS address for Roxy-WI that users' browsers can reach.
• The Roxy-WI web processes must be able to reach the provider's discovery, token, JWKS and, when configured, UserInfo endpoints.
• Create the target Roxy-WI groups before configuring default access or mappings. See groups and roles.
• Keep a working local administrator session while testing the first provider.

Roxy-WI uses the authorization code flow, checks the login state and nonce, and validates signed ID tokens against the provider's JWKS. The current flow does not send PKCE parameters; a client that requires PKCE will not work with this implementation.

1. Set ROXYWI_PUBLIC_URL to the external Roxy-WI origin, for example https://roxy-wi.example.com, without a trailing slash. Apply it to all web processes and restart or recreate them after changing the environment. This is especially important behind a reverse proxy.
2. Register a web application at the identity provider for authorization code login. Obtain its client ID, client secret when required, and discovery URL. Configure it to return the claims described below.

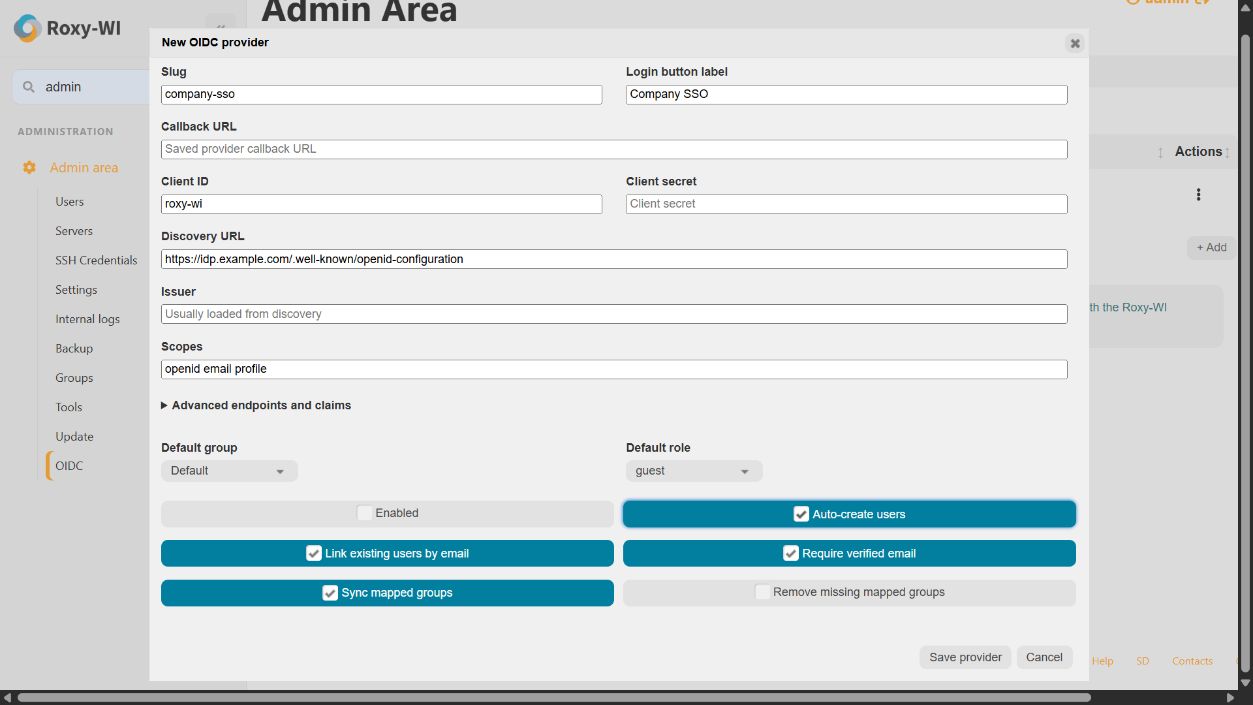

3. Open Admin → OIDC → Add. Enter a stable Slug, such as company-sso, a Login button label, such as Company SSO, the client credentials and the Discovery URL.
4. Start with Scopes set to openid email profile. Add any scope your provider needs to return group membership. Configure Default group, Default role and the user policies below. Clear Enabled during initial setup, then choose Save provider.
5. Open the saved provider's action menu and choose Edit. Copy the displayed Callback URL into the identity provider's allowed redirect URIs. Match the scheme, host, port and path exactly.
6. If using external groups, open Manage group mappings from the provider's action menu, add the required mappings and save them.
7. Enable and save the provider, then test it in a separate browser session. The login page shows Sign in with Company SSO for the example label.

With the example origin and slug above, the callback URL is:

https://roxy-wi.example.com/oidc/company-sso/callback

Use the URL displayed by your installation. Changing the slug changes the callback path, so update the identity provider's redirect URI at the same time. Without ROXYWI_PUBLIC_URL, Roxy-WI builds the callback from the incoming request.

If you do not use discovery, supply Issuer, Authorization endpoint, Token endpoint and JWKS URI. UserInfo endpoint is optional. Without discovery metadata, ID token signature verification defaults to RS256.

When a UserInfo endpoint is configured or advertised by discovery, Roxy-WI fetches it during login. Its subject must agree with the ID token when present. If the same claim appears in both responses, the verified ID token value takes precedence.

Client secrets are encrypted with the installation's existing credential key, [main] secret_phrase (or its ROXYWI_SECRET_PHRASE override), and are not returned by the provider API. Keep that key when upgrading or moving the installation.

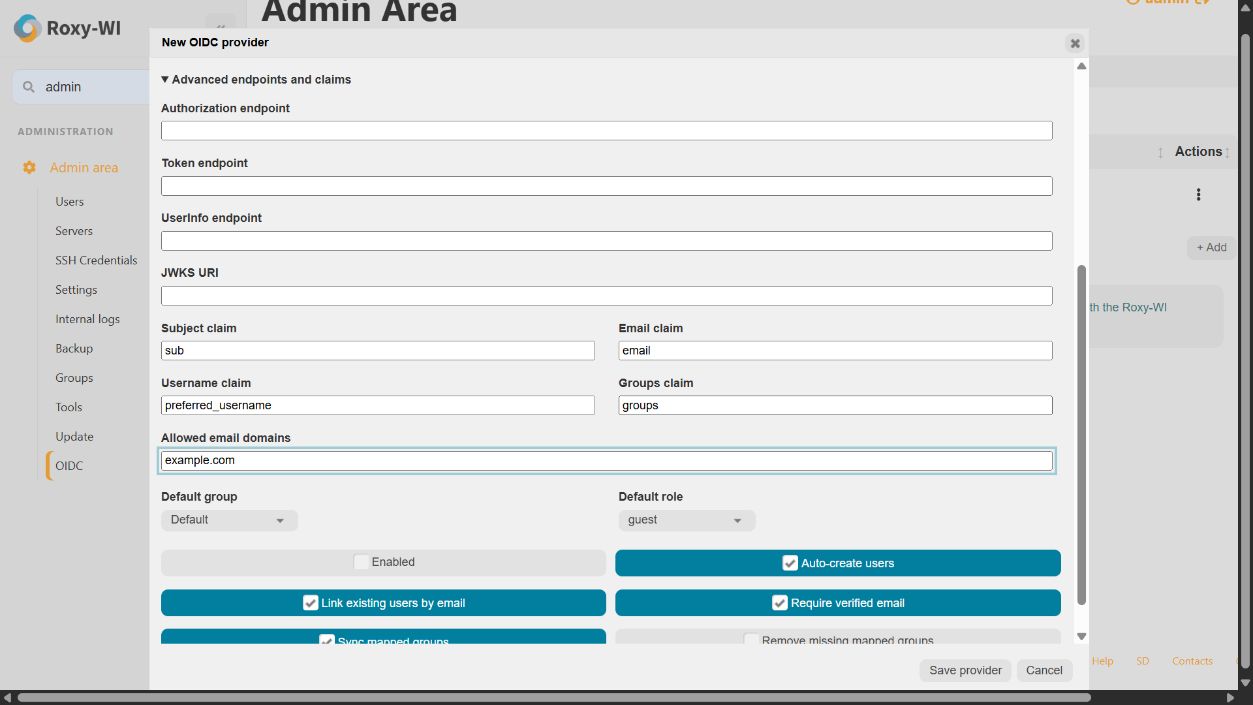

Claim names are configured under Advanced endpoints and claims. Direct names and dotted paths are supported, such as realm_access.roles for a nested groups value.

For example, these application claims provide a verified email and one external group. This is an illustrative claims fragment, not a complete ID token:

{
  "sub": "user-12345",
  "email": "operator@example.com",
  "email_verified": true,
  "preferred_username": "operator",
  "groups": ["roxy-operators"]
}

Changing a claim name in Roxy-WI does not make the identity provider emit it. Configure the application's scopes or claim mappings at the provider as well.

For an existing team, create local accounts with unique email addresses and group memberships, then use email linking. To provision users at first login, enable Auto-create users and configure either default access or matching external groups.

If an email already belongs to a local user and email linking is off, login is rejected rather than creating a second account. After the first successful link, the issuer and subject identify the account. A disabled linked user cannot sign in.

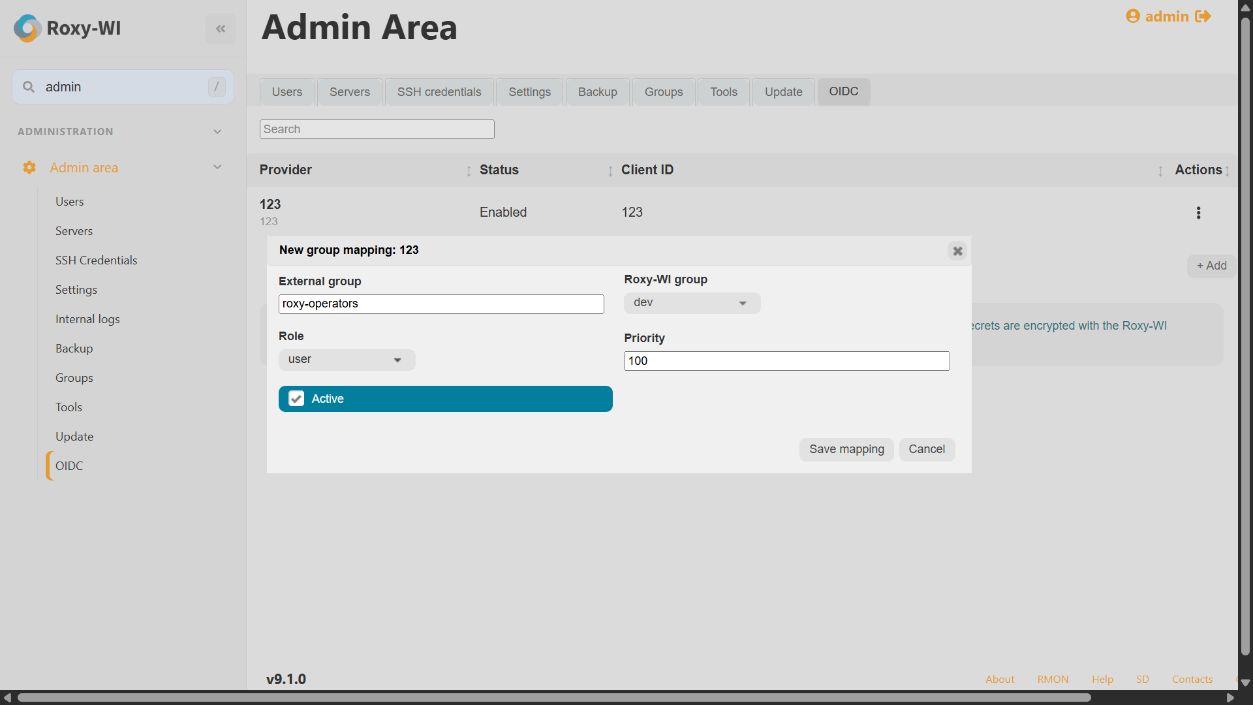

Open a provider's Manage group mappings action, then choose New mapping. Set the External group, target Roxy-WI group, Role, Priority and Active state. For the claims example above, map roxy-operators to your existing Operations group and the role those operators need.

• Sync mapped groups is on by default. Active mappings run at each OIDC login; this is not a background directory synchronization.
• External group names match without regard to case. A user can match several mappings and receive membership in several Roxy-WI groups.
• When synchronization is enabled and active mappings exist, newly created users must match a mapping. The default group is not a fallback. Existing users can still sign in if they retain another membership.
• Remove missing mapped groups is off by default. Enable it to remove memberships in groups targeted by the provider's active mappings when they are no longer matched. Other memberships are retained. Disabling or deleting a mapping does not itself remove existing membership.
• Mappings run from lower to higher priority, then by mapping ID. If several matching rules target the same Roxy-WI group, the last rule applied determines its role. Avoid conflicting rules for one group.

If no memberships remain, login fails. User creation, identity linking and group synchronization are transactional: a failed group assignment does not leave a newly created user behind. OIDC login still uses Roxy-WI's group, role and service permissions.

1. Use a separate browser session to open the Roxy-WI login page and select the provider's button.
2. Authenticate at the identity provider and confirm that the browser returns to the registered callback URL, then to Roxy-WI.
3. Check the resulting account, current group, available groups and role. Confirm that it can access the intended servers and services.
4. Test a second login to confirm the same account is reused. If testing mapped group removal, change the test user's external membership and start a new OIDC login; existing sessions are not continuously resynchronized.

For multiple web replicas, use the same persistent Flask session secret (ROXYWI_SECRET_KEY or shared configured secret file) and the same credential encryption key. Otherwise the callback can reach a worker that cannot read the login session or decrypt the client secret.

Login failures return an error code and message. Use the code to identify the failed stage:

See internal logs for login diagnostics and pricing for subscription availability.
